The Inherent Fall And Rise Of Coexistence
October 2019
basswood, cardstock, graphite on vellum
Illustrator, Photoshop, InDesign, Rhinoceros

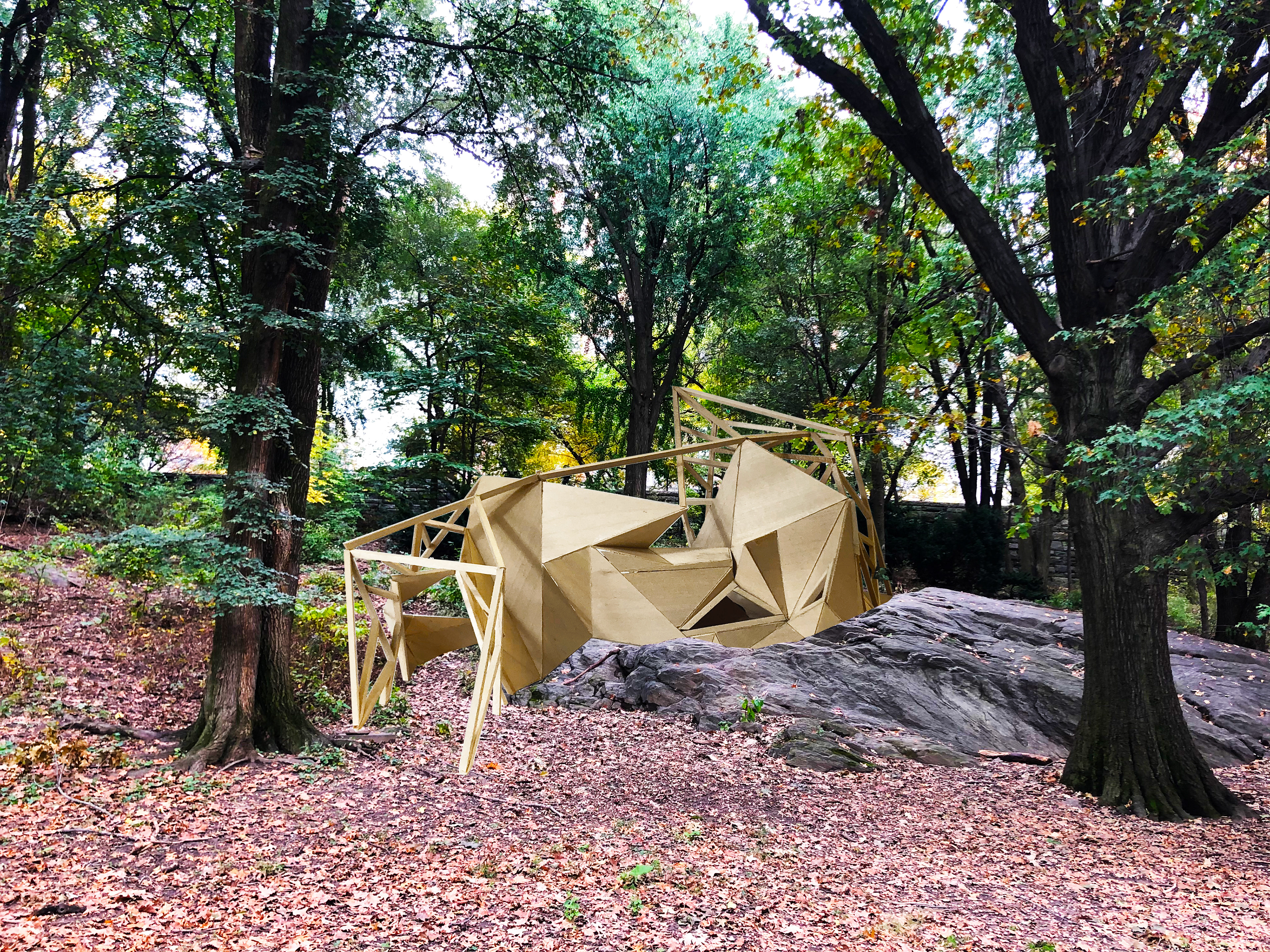

A tunnel that modulates a gradient of tension between existing and proposed conditions of envelopment along a path up the Big Rock in Riverside Park at 115th. ​​​​​​​

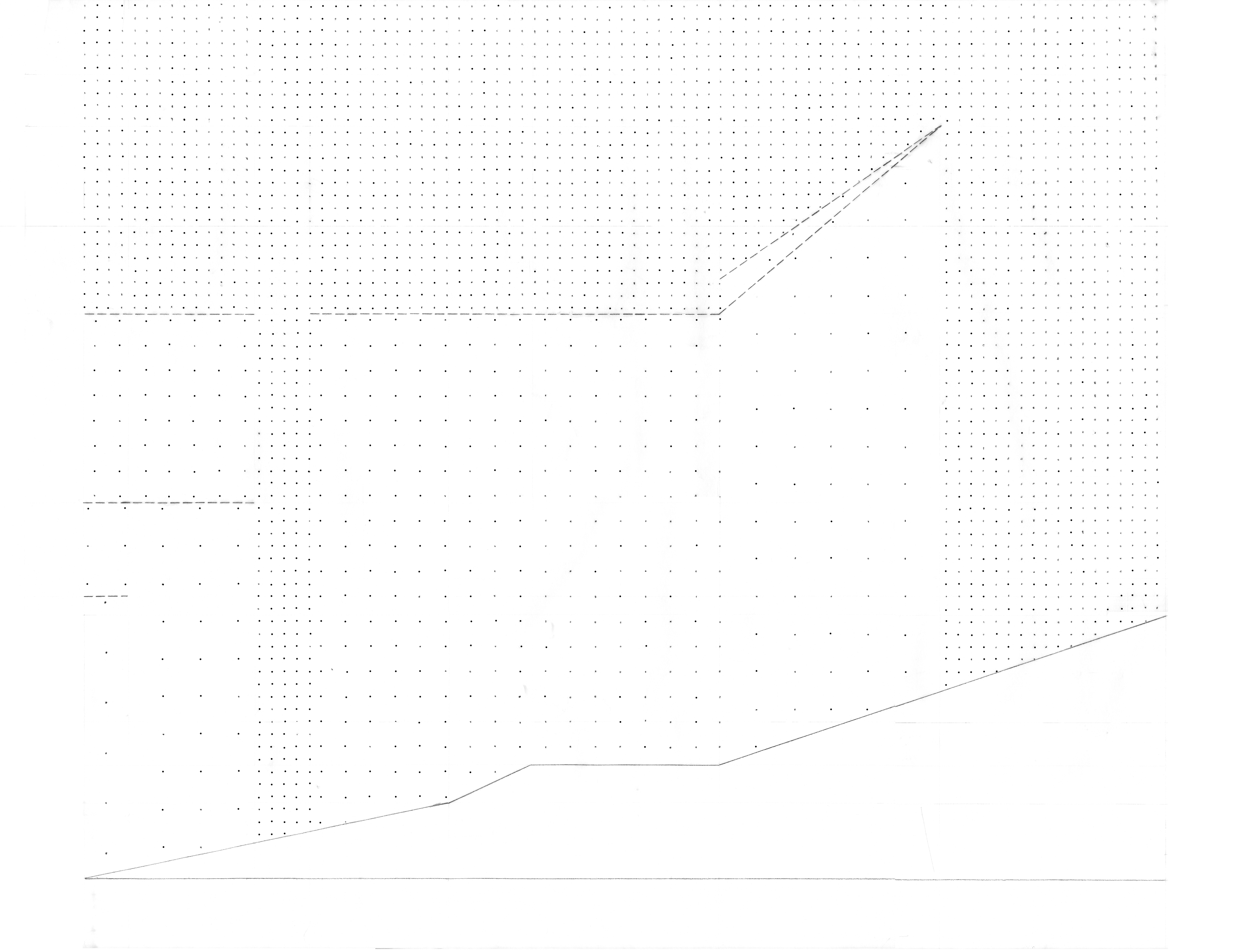

EXISTING RAIN AND LIGHT FILTRATION THROUGH TREE CANOPIES  /  graphite on vellum  /  19 x 24 in.  /  1’ = 3/8”

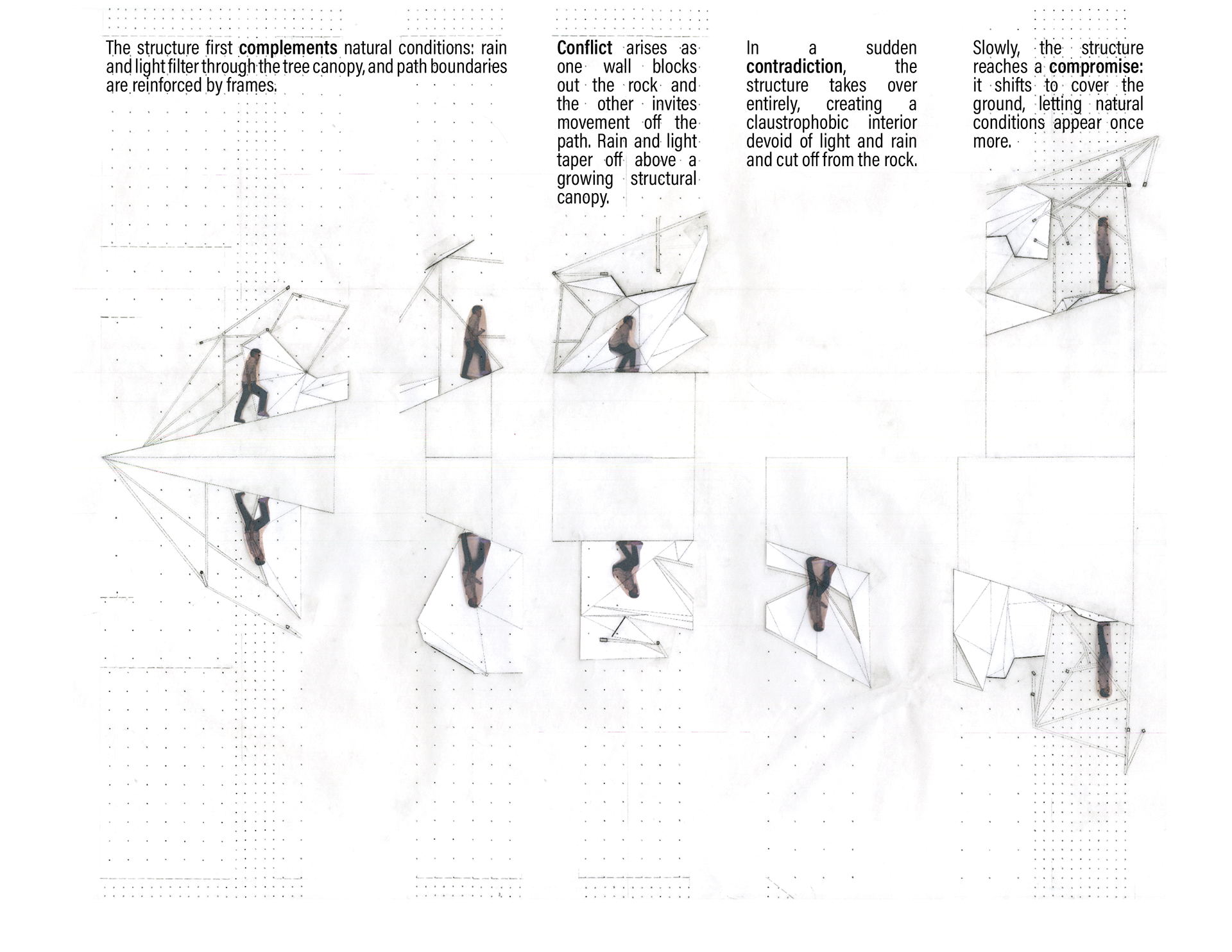

UNROLLED SECTION WITH MODULATED FILTRATION

graphite on vellum with cardstock and photographic underlay / 24 x 36 in. / 1’ = 3/8”

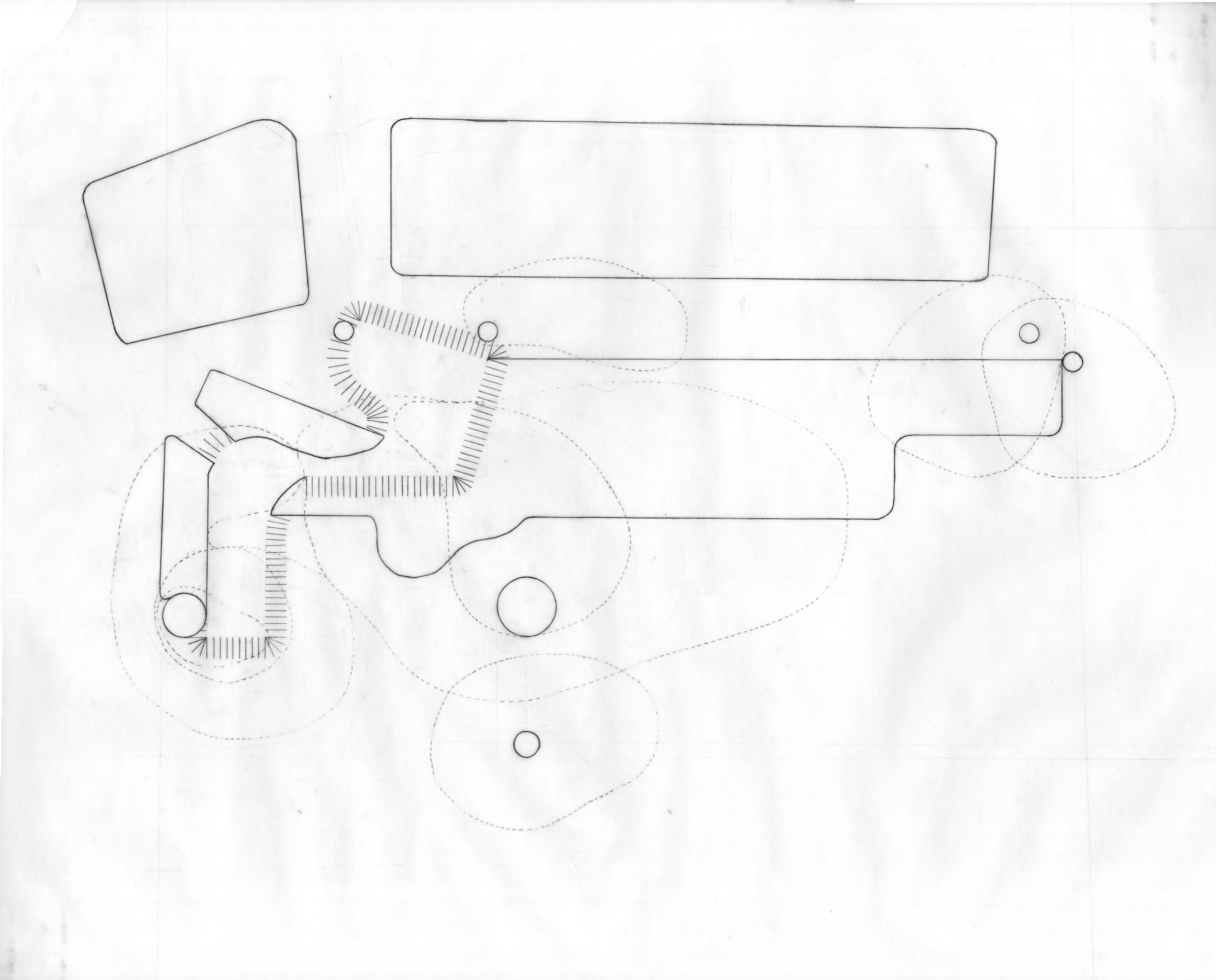

SITE PLAN WITH EXISTING OFF-PATH ACCESS / graphite on vellum / 19 x 24 in. / 1’ = 3/16”

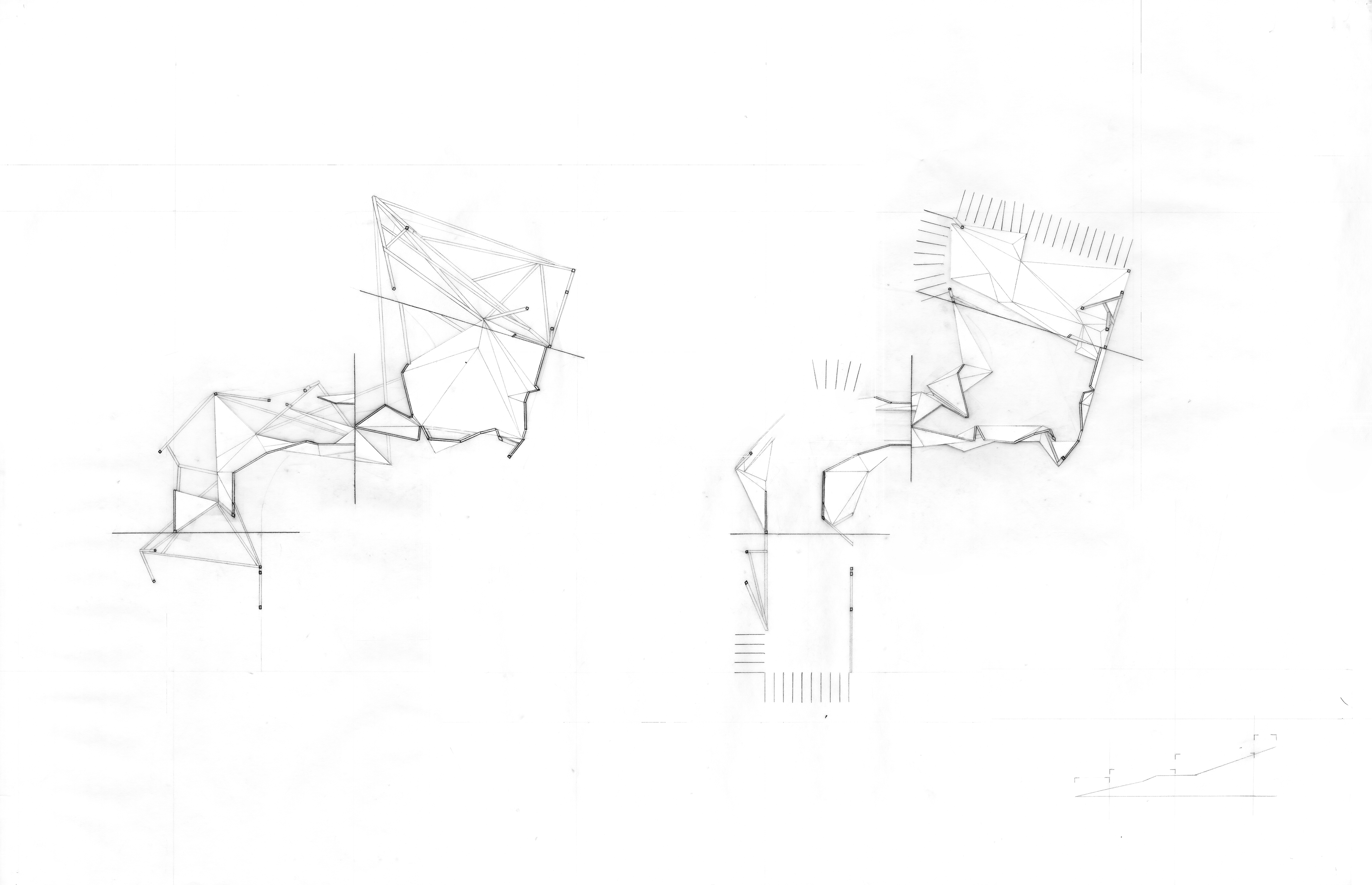

STEPPED RCP AND PLAN WITH MODULATED OFF-PATH ACCESS

graphite on vellum with cardstock underlay / 24 x 36 in. / 1’ = 3/8”
